Product / NIR Spectrometer

Identify narcoticsin five seconds.

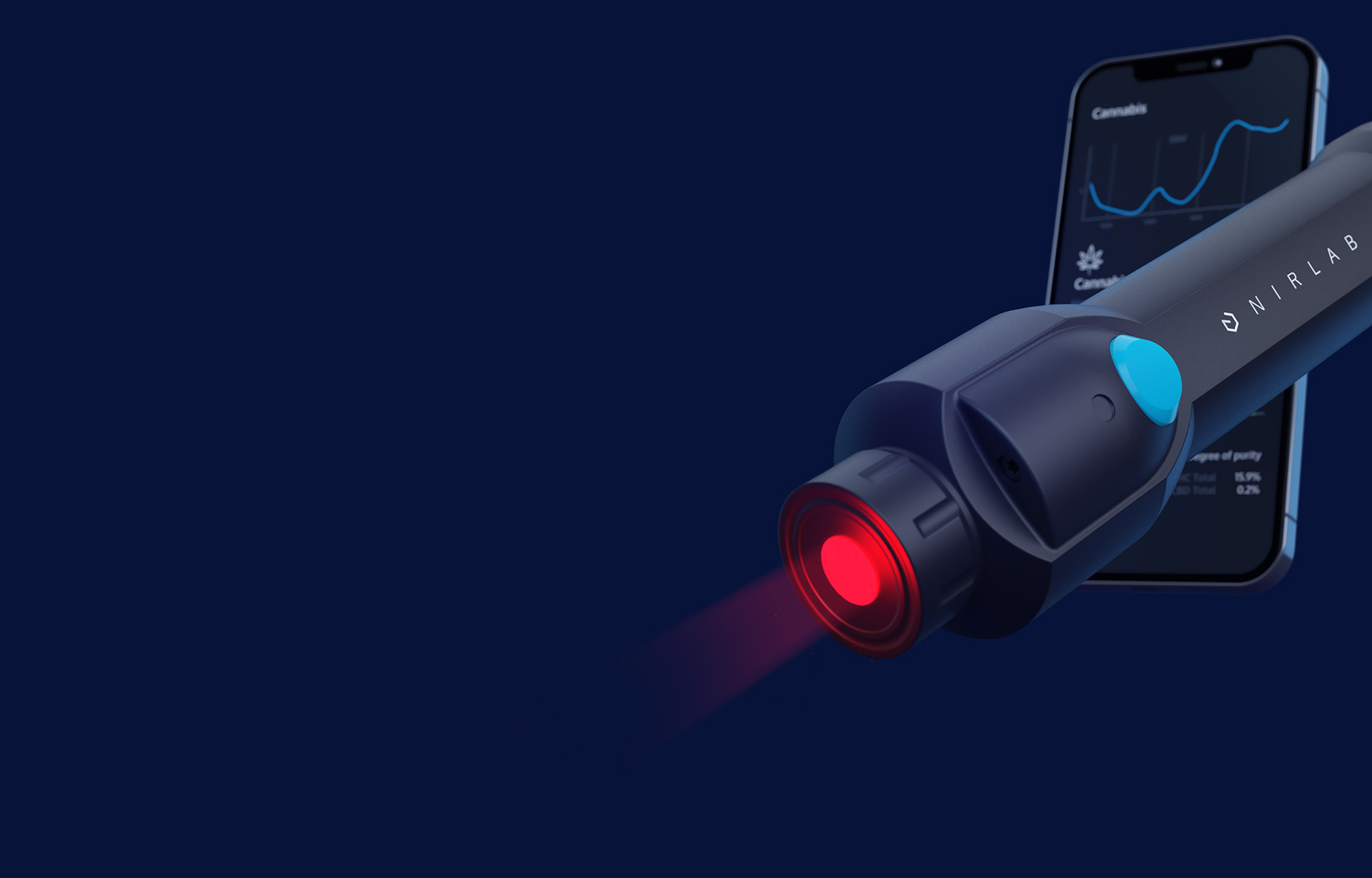

A handheld near-infrared spectrometer engineered for field forensics — point, click, and quantify illicit substances, explosives, and pharmaceuticals on-site, with no sample preparation and no lab delay.

950–1650 nm0.25 secIP67BLE + USB
// Field Applications

One instrument. Any material. Anywhere.

The NIR spectrometer brings the laboratory to the sample — across forensics, pharma, recycling, and agriculture.

Pharmaceuticals & Drug Inspection

Accelerate incoming-goods and quality inspections across the pharmaceutical and chemical industry — no sample transport to the laboratory required.

Narcotics & Explosives Detection

Identify and quantify illicit substances and explosives on-site. A safe, easy-to-use solution for law enforcement, drug-checking services, and harm-reduction organizations.

Polymer & Plastic Identification

Sort PP, PE, PET, PA6 vs PA66, LDPE, HDPE, PVC, ABS and more — granulates, flakes, or finished parts — in seconds, on-site.

Food, Feed & Agriculture

Predict protein, fat, moisture, and mineral content in food and livestock, or bring the mobile lab to the field for fast nutritional analysis of feed.

// Core Capabilities

Laboratory-grade analysis, pocket-sized.

Bluetooth & USB Connectivity

Wireless pairing to smartphone and tablet, with ruggedized USB for direct PC link.

Real-Time Analysis

Rapid near-infrared analysis anywhere — results in under a second, no lab queue.

Point-and-Click Operation

Single multi-function button for intuitive, one-handed field use.

Non-Destructive Testing

Near-infrared spectroscopy leaves the sample intact — preserve evidence, retest anytime.

// Technical Specification

The specifications.

Illumination sourceTwo integrated vacuum tungsten lamps
Lamp life40,000 hr
Sample working distance3 mm optimal, 0–15 mm
Dispersing elementVIAVI linear variable filter (LVF)
Detector128 pixel InGaAs photodiode array
Wavelength range950 – 1650 nm (10,526 – 6060 cm⁻¹)
Pixel-to-pixel interval6.2 nm for 950 – 1650 nm
Spectral bandwidth (FWHM)<1.25% of center wavelength, 1% typical
Analog-to-digital convertor16 bit
Dynamic range (Max)1000:1
Measurement time (typical)0.25 – 0.5 sec
Signal-to-noise ratio (typ.)25,000
Integration time10 ms typical, minimum 10 µsec
ConnectivityBluetooth 4.1 (BLE) and USB 2.0
Weight<250 g (<9 oz)
Size (L × Ø)194 mm × 47 mm
BatteryRechargeable Li-ion, non-removable
Battery run time / charge10 hours, lamps on continuously
Battery cycle life75% capacity after 300 cycles
Battery charge time3.5 hours at 1 A
Operating temperature-20 – 40 °C (noncondensing)
Storage temperature-20 – 50 °C (noncondensing)
Dust & water resistanceIP65 and IP67
Shock and vibrationMIL-PRF-28800F Class 2
// Frequently Asked

Questions, answered.

A battery-powered handheld near-infrared analyzer that connects wirelessly to smartphones, tablets, and PC. Its compact, ruggedized, ergonomic design makes it ideal for field, laboratory, and manufacturing applications — a point-and-click instrument with no sample preparation.
